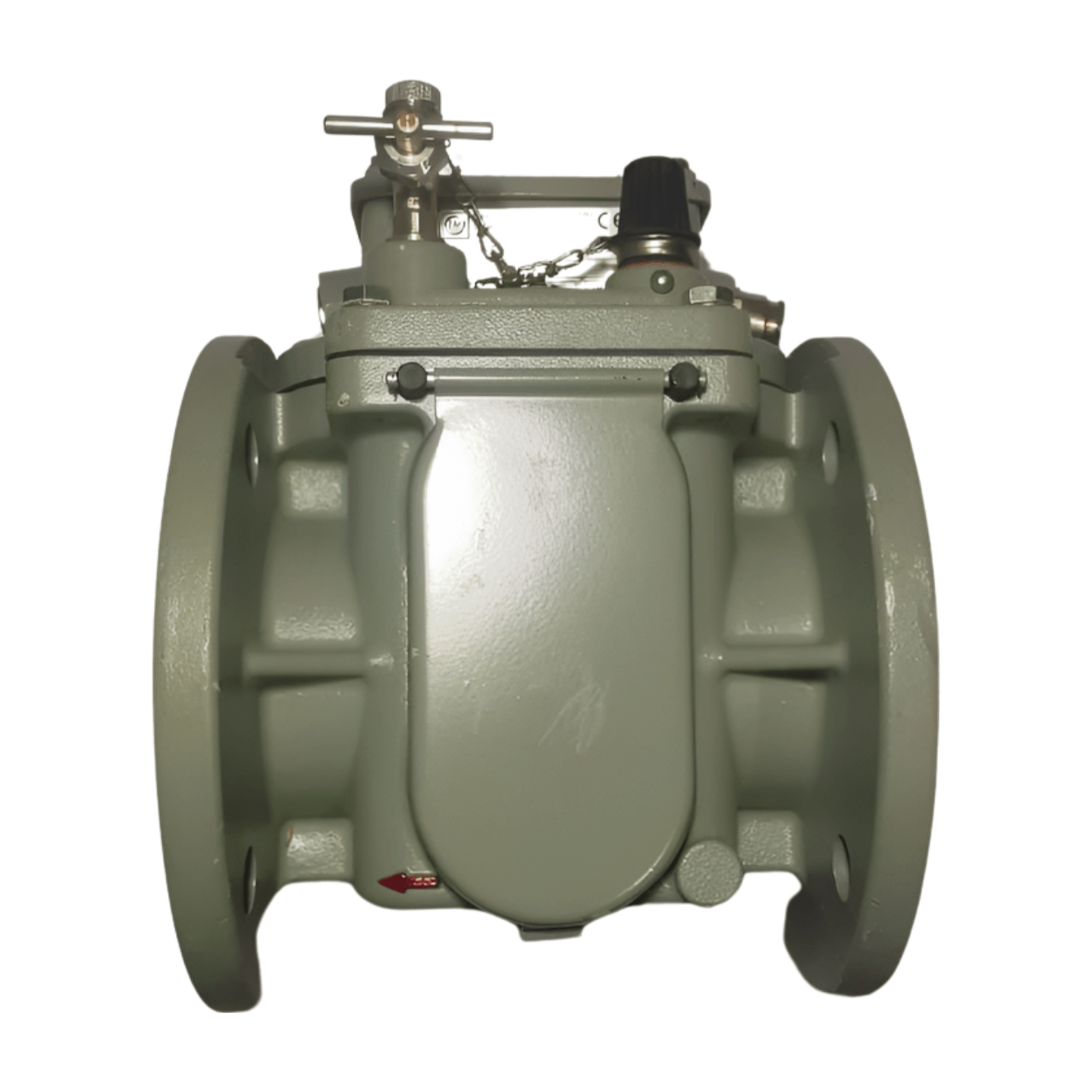

When a power transformer fails without warning, the consequences extend far beyond equipment damage. Unplanned outages, costly repairs, safety hazards, and significant financial losses can all follow a single undetected fault. The Buchholz Relay BF 80/10 by EMB Germany exists precisely to prevent that scenario. It stands between your transformer and catastrophic failure, giving your system the intelligence to detect developing faults before they escalate into irreversible damage. For engineers and facility managers who understand that transformer protection is not optional, this relay represents a proven, precision-engineered solution from one of the most respected names in transformer protection technology.

The EMB brand carries decades of engineering credibility out of Germany, a country synonymous with precision manufacturing and rigorous quality standards. When you specify an EMB Buchholz relay, you are not selecting a generic protective device — you are choosing a component that has been engineered to perform reliably in demanding industrial environments, tested against exacting tolerances, and trusted by transformer operators worldwide. The BF 80/10 designation tells a specific story: this relay is designed for pipe connections with an 80mm flange diameter, making it directly compatible with a wide range of medium and large power transformers where the main tank requires dedicated gas and oil flow monitoring.

The core function of the BF 80/10 is to monitor the oil-filled pipeline between the transformer main tank and the conservator tank. When a fault develops inside the transformer — whether it is an incipient winding failure, core insulation breakdown, or an internal arc — it generates gas and abnormal oil movement. The BF 80/10 detects both. A slow accumulation of gas triggers the alarm float, alerting operators that something is developing and allowing them to investigate and intervene before conditions worsen. A sudden surge of oil caused by a more severe internal fault triggers the trip float, sending an immediate signal to disconnect the transformer from the network. This two-stage response means you get early warning on developing faults and instant protection against sudden catastrophic events — two layers of defense built into a single, compact device.

The 80mm pipe connection size is a critical practical specification. It ensures that the relay integrates directly into standard transformer pipework without requiring custom adapters or modifications, reducing installation time and eliminating potential leak points that come with non-standard fittings. The design of the BF 80/10 follows well-established IEC and VDE standards, which means it aligns with the protection coordination requirements used by utilities, industrial plants, and transformer manufacturers across global markets. Maintenance teams familiar with Buchholz relay systems will find the BF 80/10 straightforward to test, inspect, and service.

This relay is the appropriate choice for oil-immersed power transformers in substations, industrial facilities, renewable energy installations, and utility networks where transformer continuity is critical to operations. It is particularly well suited for applications where transformers operate in remote or unattended locations, where early fault detection via the alarm stage can prevent a maintenance crew from arriving to find a transformer already beyond recovery. The BF 80/10 gives remote monitoring systems a reliable signal to act on.

Installation is straightforward for qualified electrical engineers. The relay mounts in-line on the conservator pipe, oriented at the correct angle to allow accurate float operation. Proper installation ensures that both the alarm and trip contacts function as designed, and that the test valve allows periodic functional verification without taking the transformer offline unnecessarily. EMB’s engineering documentation supports correct commissioning, and the relay’s robust construction means it will continue performing accurately across years of service with minimal intervention.

Protecting a transformer with the right Buchholz relay is one of the most cost-effective decisions a maintenance or engineering team can make. The value of the BF 80/10 is measured not in its purchase price but in the transformer failures it prevents, the outages it avoids, and the operational continuity it preserves. Specifying an EMB-manufactured relay means you are backing that protection with German engineering quality and a product designed specifically for this purpose.

If reliable transformer protection matters to your operation — and it should — the Buchholz Relay BF 80/10 by EMB Germany is a specification you can make with complete confidence.
