Description

The Mostec AG VAREG VG-CS 200: Precision in Contact Resistance Testing

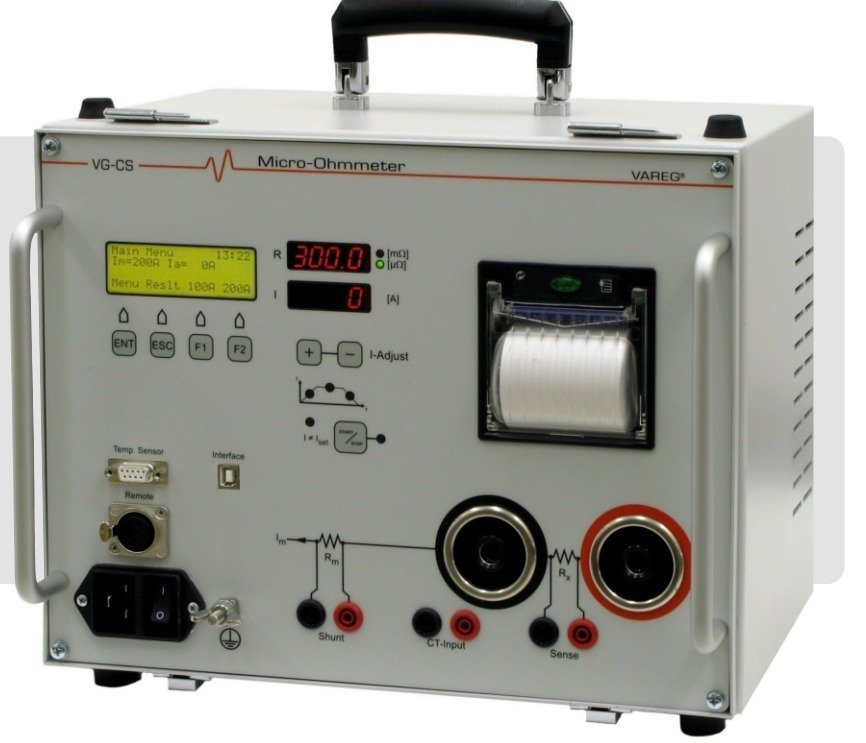

The Mostec AG VAREG VG-CS 200 is a highly specialized, Swiss-made contact resistance meter—often referred to as a micro-ohmmeter—engineered to deliver uncompromising precision in high-voltage electrical diagnostics. Designed specifically for measuring the low-resistance states of circuit breaker contacts, busbars, and critical electrical joints, this instrument is a cornerstone of proactive grid station and switchgear maintenance.

Technical Methodology and Precision

At the core of the VAREG VG-CS 200’s accuracy is its implementation of the four-wire Kelvin measurement technique. The device utilizes a high-current injection system to drive a substantial, stable test current across the closed contacts. Simultaneously, it measures the resulting voltage drop using a separate set of potential leads. This sophisticated method is critical because it completely negates the inherent resistance of the test cables and contact probes. By bypassing these external variables, the meter isolates and captures the true, absolute resistance of the test object down to the micro-ohm ($\mu\Omega$) range.

Applications in High-Voltage Infrastructure

In the field, achieving this level of precision is non-negotiable when evaluating the integrity of high-current pathways. Instruments like the VAREG VG-CS 200 are essential for verifying the operational safety of heavy-duty infrastructure, including 11kV switchgear panels, transformer connections, SF6 and vacuum circuit breakers, and isolator switches.

Over time, mechanical wear, environmental oxidation, and electrical arcing naturally degrade metallic contacts, leading to elevated resistance. If left undetected during routine testing, this microscopic increase in resistance can cause severe thermal hotspots, significant power dissipation, or even catastrophic equipment failure under heavy load.

Industry Trust and Reliability

Due to its rugged construction, field-ready design, and exceptional reliability, the VAREG series has established itself as a trusted standard among European transmission system operators (TSOs). Its ability to provide highly repeatable diagnostic data ensures that protection engineers can confidently assess asset health, predict equipment degradation, and secure the continuous, safe distribution of power across the electrical grid.
