200A unlimited continuous mode
Small and weighs less than 15 kg (33 lbs)
Test currents from 10 to 200 A DC
1 μΩ best resolution
On board memory for up to 300 test results and notes
RS232 port to download stored results or for real time output to a printer
Megger DLRO200 measures resistances between 0.1 μΩ and 1 Ω, at high currents.

Description
Reviews (0)

Description

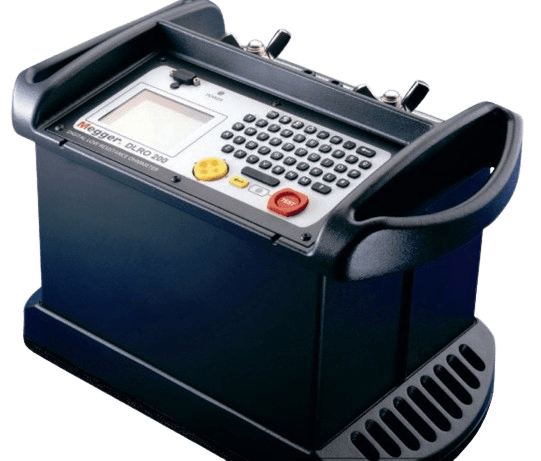

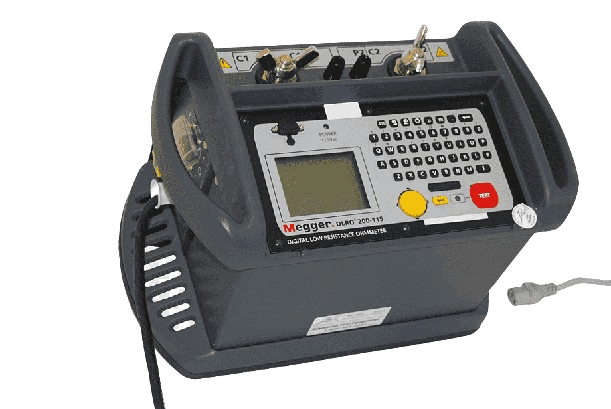

The Megger DLRO 200 is a digital low-resistance ohmmeter that injects up to 200 A DC for measuring contact resistance in circuit breakers, transformer tap changer contacts, and electrical joints. It uses the four-wire measurement technique to eliminate test lead resistance from results. The DLRO 200 is a flagship Megger instrument for accurate micro-ohm measurements in high-voltage substation maintenance.
