Description

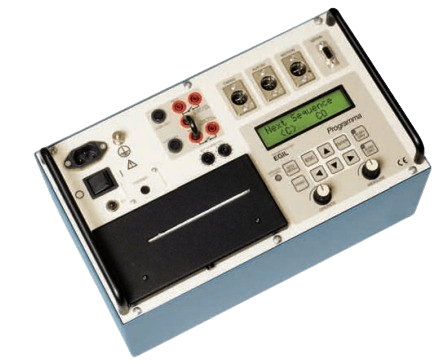

The Programma EGIL Circuit Breaker Analyzer is a high-performance, automatic timer and motion analyzer specifically engineered for medium and high-voltage substation maintenance. Designed primarily for circuit breakers with one contact per phase, this compact and lightweight instrument offers the sophistication of larger test systems in a much more portable and user-friendly package. It is an essential tool for utilities, industrial facilities, and high-voltage testing contractors requiring precise diagnostic data.

Equipped with three timing channels that are internally connected on one side, the device can simultaneously record events at parallel contacts, including those with pre-insertion resistors. It also features two independent channels for measuring auxiliary contacts, ensuring a complete overview of the breaker’s operational sequence. The built-in sequencer automatically prepares the unit for the next operation—such as Close, Open, or Open-Close sequences—which significantly reduces setup time during field inspections.

Maintenance professionals benefit from the integrated coil current measurement, which provides immediate tabular and graphical results via the built-in thermal printer. For enhanced data management, the system can be interfaced with a PC using CABA Win software. By combining reliability with advanced digital processing, the unit ensures grid stability through meticulous performance verification of critical power infrastructure.
