Description

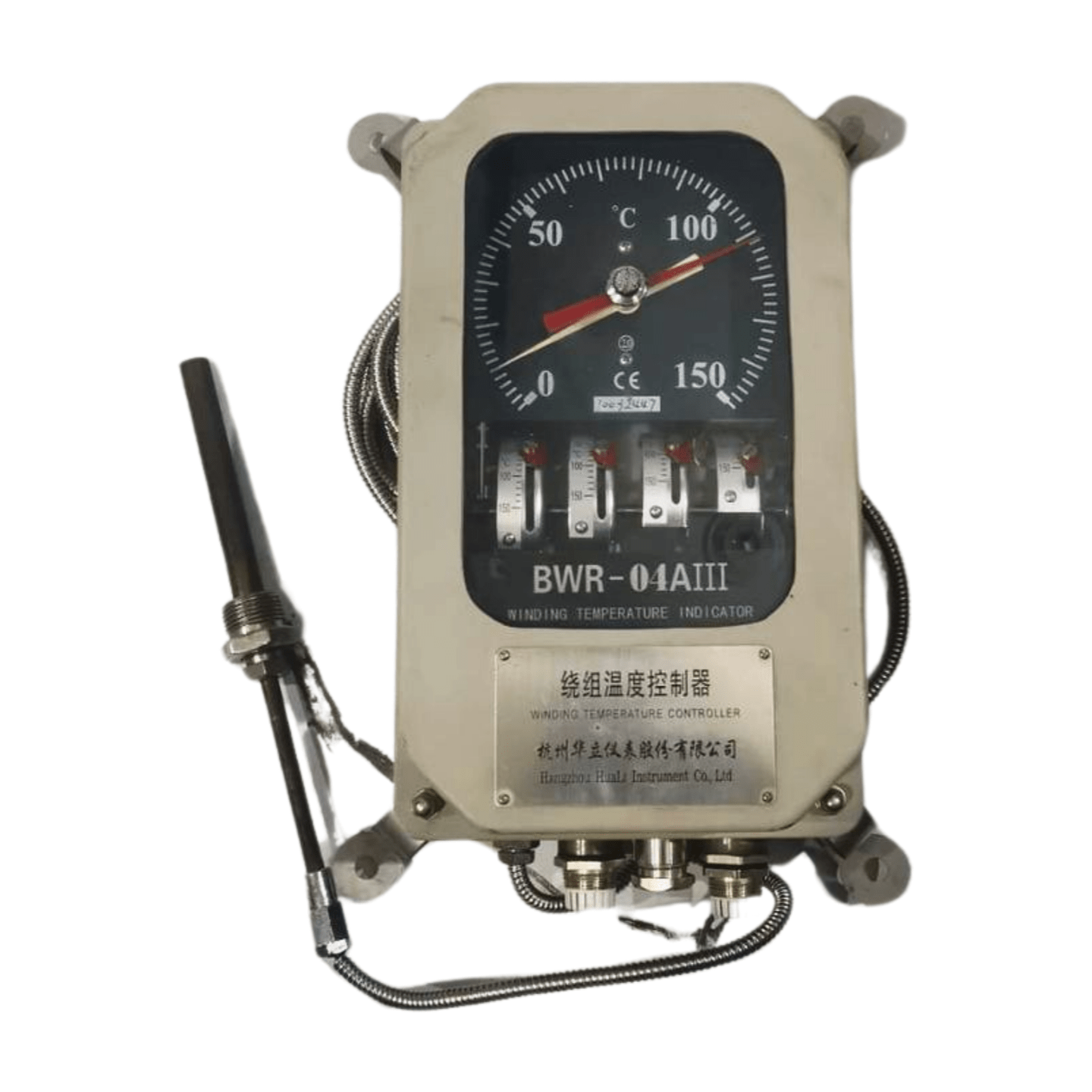

Transformer failures are rarely sudden — they build slowly, silently, through heat that goes undetected until it is too late. A single overheating event can degrade insulation, shorten transformer life by years, and in worst-case scenarios, cause catastrophic failure that brings operations to a complete standstill. The BWR-04 A3 Winding Temperature Gauge with 4 Switch capability and a 150°C range exists precisely to prevent that outcome. It gives engineers, maintenance teams, and facility managers the real-time thermal visibility they need to protect their most critical electrical assets before damage ever begins.

The core purpose of any winding temperature gauge is simple: know what is happening inside your transformer at all times. But not all gauges are built to act on that knowledge. The BWR-04 A3 goes beyond simple temperature display by integrating four independent switch outputs directly into a single, compact instrument. What does that mean for you? It means you can simultaneously trigger alarms, activate cooling systems, send remote signals, and initiate automatic shutdown — all from one device, without stacking multiple instruments or adding unnecessary complexity to your panel design. Four switches mean four layers of protection, each configurable to a different temperature threshold so your response can be graduated and intelligent rather than binary.

The 150°C maximum temperature range is a deliberate engineering choice that aligns with the thermal limits of standard transformer insulation classes. Most power and distribution transformers operate with winding temperatures well below this ceiling under normal load conditions, but during overload events, ambient temperature spikes, or cooling system failures, temperatures can climb rapidly toward dangerous thresholds. A gauge rated to 150°C gives you full visibility across the entire critical range — from normal operating temperatures through warning zones and all the way to emergency limits — without the measurement uncertainty that comes from using an instrument pushed near its own limits.

The 6-meter capillary length is a practical feature that delivers genuine installation flexibility. Transformers are not always conveniently sized, and the temperature sensing point inside the winding pocket is rarely located directly adjacent to where the gauge dial needs to be mounted on the panel or marshalling box. A 6-meter capillary gives installation teams the reach to route the sensor connection cleanly and safely, avoiding sharp bends, heat sources, and mechanical interference, while still maintaining accurate and responsive temperature transmission from the sensing bulb to the dial indicator. This reduces installation time, minimizes the need for custom mounting solutions, and ensures the gauge can be read comfortably by operators during routine inspections.

The Make BWR-04 A3 designation identifies this as a precision instrument built to the standards expected in industrial power infrastructure applications. These gauges are commonly specified in oil-filled distribution transformers, power transformers in substations, and large industrial transformers used in manufacturing plants, utility installations, and commercial facilities. Anywhere that transformer reliability is critical to continuous operation, a calibrated, switch-equipped winding temperature gauge is not optional — it is fundamental to any responsible maintenance and protection strategy.

From a practical standpoint, installation involves mounting the gauge on the transformer tank or associated panel, inserting the sensing bulb into the designated winding temperature pocket, routing the 6-meter capillary carefully to avoid mechanical damage, and wiring the four switch contacts into the facility’s alarm and control circuit. Each switch contact can be independently set to trip at a specific temperature, allowing operators to define warning, alarm, cooling activation, and trip levels that match the transformer’s specific protection requirements and the operational priorities of the facility.

Choosing the right temperature gauge is choosing the right level of protection for an asset that your entire operation depends on. The BWR-04 A3 with its 150°C range, four independent switch outputs, and 6-meter capillary delivers the measurement accuracy, switching versatility, and installation practicality that demanding industrial applications require. It is a straightforward investment in uptime, equipment longevity, and operational confidence — the kind of instrument that earns its place every single day by quietly ensuring your transformer never becomes a liability.
