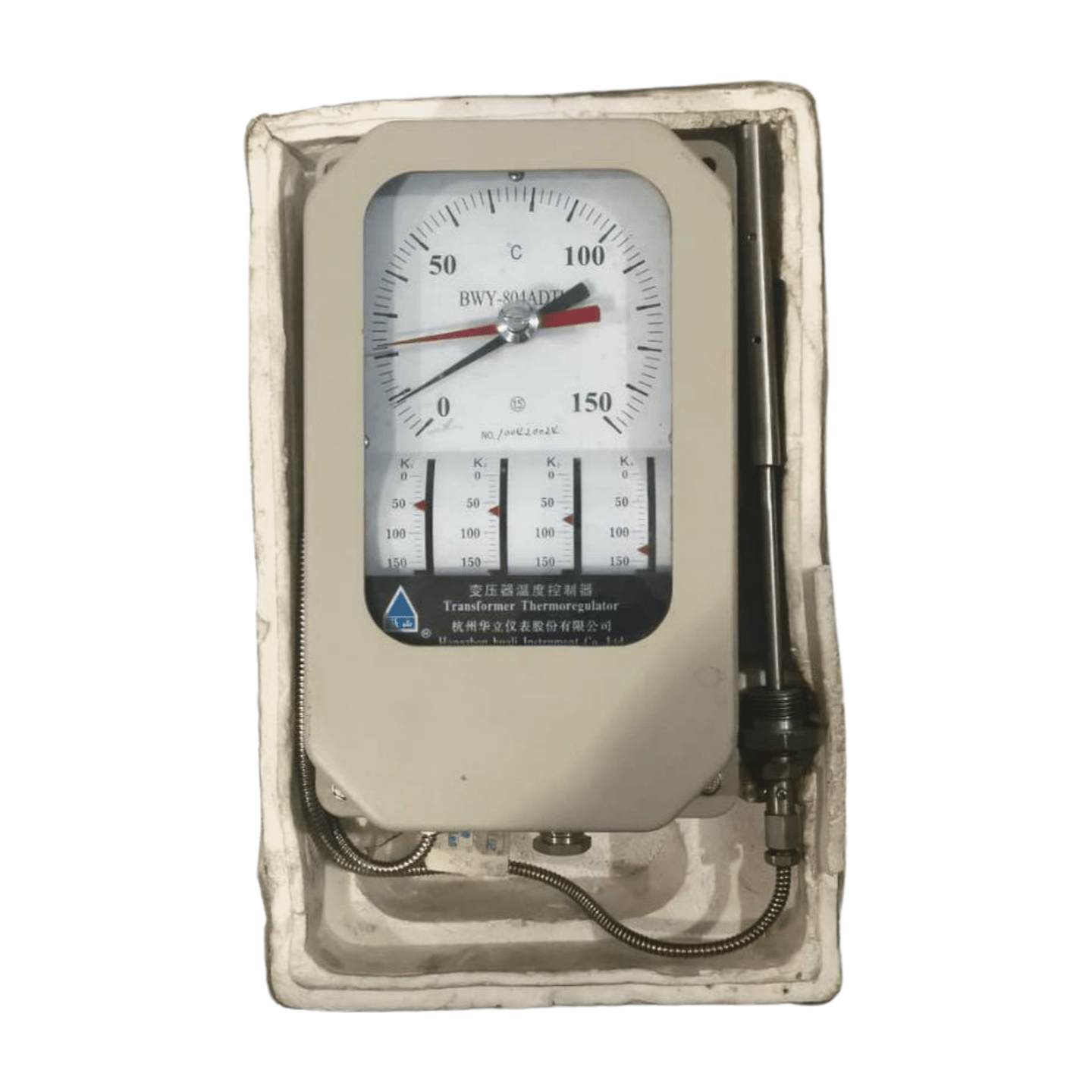

Transformer protection begins with accurate, real-time temperature monitoring. When winding temperatures go unchecked, transformers overheat, insulation degrades, and costly failures follow — often without warning. The Huali BWy-04 Winding Temperature Gauge is engineered to eliminate that risk entirely, giving electrical engineers, maintenance teams, and facility managers a reliable, purpose-built solution for continuous winding temperature surveillance. Whether you are managing a distribution substation, an industrial power system, or a large commercial facility, this gauge delivers the kind of precise, actionable data that keeps transformers running safely and efficiently for years.

The core challenge with transformer management is that internal winding temperatures can spike well beyond what external sensors detect. Surface readings are not enough. The BWy-04 addresses this directly by measuring winding temperature at the source, giving operators a true picture of thermal conditions inside the transformer. This means maintenance decisions are based on actual operating data rather than estimates or assumptions — reducing unnecessary downtime, preventing premature equipment replacement, and avoiding the far more expensive consequence of an unplanned transformer failure.

At the heart of this instrument is a 150-degree Celsius maximum temperature rating. For the customer, this means the gauge comfortably covers the full operational temperature range of most oil-immersed power transformers, including peak load conditions and seasonal temperature swings. You are not working with a gauge that operates near its limit during normal use. The 150°C ceiling provides genuine headroom, ensuring measurement accuracy and instrument longevity even during sustained high-load periods when protection matters most.

The integrated 4-switch configuration is one of the most practically valuable features of the BWy-04. Rather than simply displaying a temperature reading, this gauge actively participates in your protection scheme. Each of the four switches can be independently set to trigger at specific temperature thresholds, allowing you to configure staged alarm and trip responses. In practical terms, this means you can set the first switch to activate a warning alarm, the second to initiate cooling fan operation, the third to trigger a load shedding relay, and the fourth to execute a full trip command — all from a single instrument. This layered protection approach dramatically reduces the risk of catastrophic failure and gives operators time to respond before conditions become critical.

The 6-meter capillary cable length is a specification that directly solves a real installation challenge. Transformer monitoring equipment is rarely positioned immediately adjacent to the measurement point. The 6-meter reach gives installation teams the flexibility to route the sensing element to the winding pocket while positioning the gauge dial at an easily readable location on the transformer tank or control panel. This eliminates the need for extension fittings, reduces installation complexity, and ensures a clean, professional installation that is easy to read during routine inspections.

The BWy-04 is manufactured by Huali, a recognized name in transformer protection instrumentation with a track record of producing instruments that meet the demanding requirements of industrial and utility-grade applications. This is not a generic temperature gauge repurposed for transformer use — it is a product designed specifically for winding temperature monitoring, which means the calibration, switch mechanism, and capillary system are all optimized for this exact application. That specialization translates directly into measurement reliability and long service life.

Typical applications for the Huali BWy-04 include oil-immersed power transformers in utility substations, industrial manufacturing facilities, data center power infrastructure, commercial building distribution systems, and renewable energy installations. Any environment where transformer reliability is critical and unplanned outages carry significant operational or financial consequences is an environment where this gauge earns its place.

When you invest in the Huali BWy-04 Winding Temperature Gauge, you are investing in proactive transformer protection. You gain accurate temperature measurement up to 150°C, four independently configurable protection switches, and a 6-meter capillary cable that makes installation practical in real-world conditions. This is a straightforward, dependable instrument from a trusted manufacturer — one that does exactly what transformer protection requires, every hour of every day. Order with confidence knowing you are equipping your system with a gauge built for the job.
