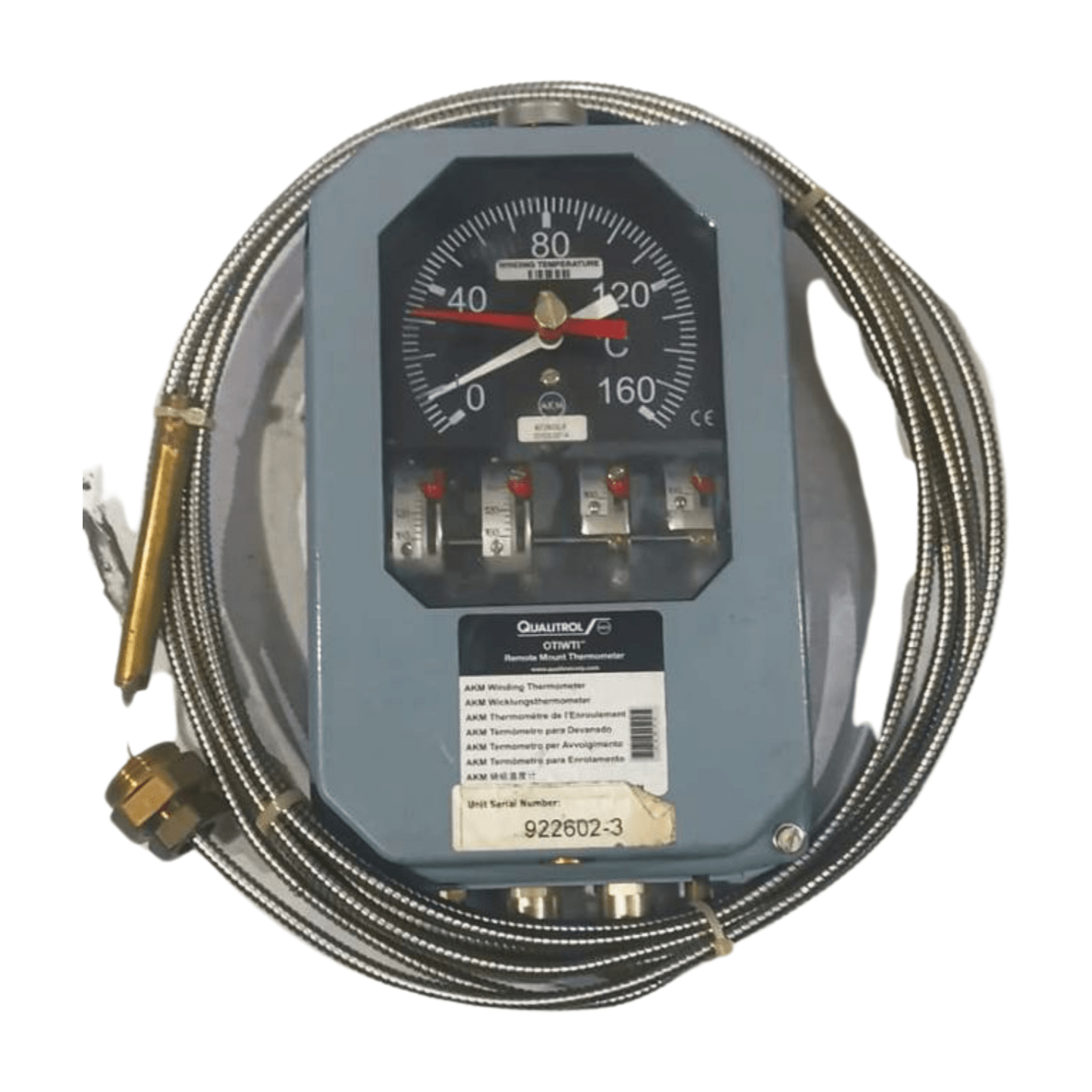

When a transformer fails due to overheating, the consequences go far beyond a simple equipment repair. Unplanned downtime, costly damage to windings, safety risks to personnel, and significant financial losses can all follow a single thermal event that could have been prevented. That is precisely why serious engineers and facility managers do not leave winding temperature monitoring to chance. The Winding Temperature Gauge Make MR (Germany), Type WT 1432-6 M TTX, is the kind of instrument that stands between your transformer and an expensive, avoidable failure.

Manufactured by MR — Maschinenfabrik Reinhausen — in Germany, this gauge carries the engineering heritage of one of the most respected names in transformer technology. MR has been at the forefront of transformer monitoring and control solutions for decades, and their instruments are trusted in power stations, industrial facilities, and utility substations across the globe. When you choose this gauge, you are not simply buying a temperature indicator. You are investing in German-engineered precision that has been field-proven in demanding environments where accuracy and reliability are non-negotiable.

The gauge is rated to a maximum temperature of 160 degrees Celsius, which is directly aligned with the thermal limits of standard oil-immersed power transformers. This means the full measurement range is calibrated specifically for real-world transformer operating conditions, not a generic industrial range that leaves you guessing in the critical upper zone. You get clear, meaningful readings across the temperatures that actually matter for your equipment, allowing operators to make informed decisions before thermal stress causes irreversible insulation degradation.

One of the most operationally valuable features of this instrument is its 4-switch configuration. Each switch can be independently set to trigger at a specific temperature threshold, giving your protection and control system four separate action points. In practical terms, this allows you to configure staged responses — for example, activating cooling fans at one temperature, triggering an alarm at a higher threshold, initiating load shedding at another, and executing a final trip command at the maximum safe operating limit. This layered protection approach dramatically reduces the risk of catastrophic failure while also avoiding unnecessary shutdowns triggered by minor thermal fluctuations.

The 6-meter cable connection provides the installation flexibility that field engineers genuinely appreciate. Rather than being forced to mount ancillary control equipment directly adjacent to the transformer body, the extended cable length allows the gauge’s switching contacts to reach remote control panels, relay boards, or SCADA interface points with ease. This is especially valuable in large transformer installations or switchyard environments where equipment spacing and safety clearances must be maintained.

The Type WT 1432-6 M TTX designation confirms this is a purpose-built instrument designed for transformer winding temperature measurement, not an adapted general-purpose gauge. The thermal image principle used in winding temperature gauges accounts for both the oil temperature and the additional heat generated by load current through the windings, giving you a far more accurate representation of actual winding temperature than a simple oil temperature measurement ever could. This distinction is critical — it means your protection system is responding to what the winding is actually experiencing, not an approximated value.

This gauge is well-suited for use in oil-immersed power transformers in utility substations, industrial power distribution systems, large commercial facilities, renewable energy installations, and anywhere that reliable transformer protection is essential to operational continuity. Whether you are commissioning a new transformer, replacing an aging gauge, or upgrading an existing protection scheme, the MR WT 1432-6 M TTX delivers the measurement accuracy and switching capability that modern transformer management demands.

Protecting your transformer means protecting your entire operation. With German-engineered precision, a 160-degree measurement range, four independent switching outputs, and a 6-meter connection cable, the MR Winding Temperature Gauge WT 1432-6 M TTX gives you the tools to monitor, manage, and protect your transformer investment with complete confidence. Order with assurance — this is the level of instrumentation your equipment deserves.
