When transformer protection is non-negotiable, the instruments you rely on must perform without compromise. Transformers represent some of the most critical and expensive assets in any electrical infrastructure, and winding overheating is one of the leading causes of insulation degradation, premature failure, and costly unplanned outages. If you are responsible for maintaining the health of power transformers in industrial plants, substations, or utility networks, you already understand that accurate, real-time winding temperature monitoring is not optional — it is essential. The Qualitrol Winding Temperature Gauge is engineered precisely for this purpose, giving operators and protection engineers the reliable data they need to act before a problem becomes a catastrophe.

Qualitrol is a name that carries genuine weight in transformer monitoring and protection. Manufactured in Sweden, this gauge reflects the precision engineering and quality standards that Scandinavian manufacturing is globally respected for. When you purchase a Qualitrol instrument, you are not buying a generic measurement device — you are investing in a product built by specialists who understand transformer behavior, thermal dynamics, and the demands of continuous industrial operation. This heritage of expertise means the gauge is designed to remain accurate and dependable over years of service, even in demanding environments.

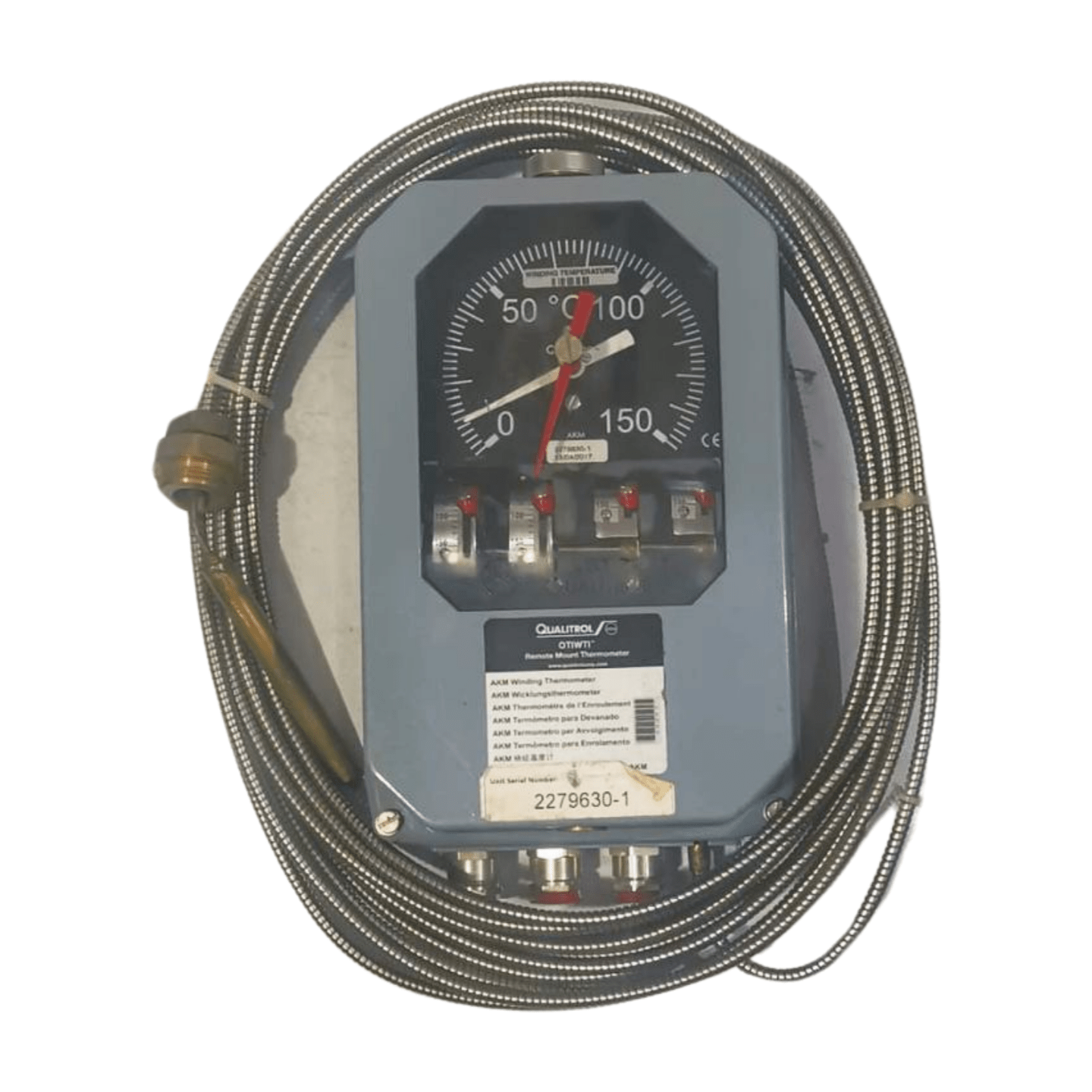

The gauge is calibrated with a 50-degree Celsius reference point, which is specifically suited for monitoring winding temperature differentials relative to the oil temperature. This thermal image principle means the gauge does not simply measure ambient or oil temperature — it simulates the actual thermal behavior of the winding conductor, giving you a far more accurate representation of what is happening inside the transformer. So what does this mean for you? It means you receive an early and reliable warning of true winding stress, not a delayed or approximate reading, allowing your protection systems to respond at the right moment rather than too late or unnecessarily early.

The 12-meter capillary length is a practical and significant specification. In real-world transformer installations, the monitoring equipment and control panels are rarely positioned immediately adjacent to the transformer tank. A 12-meter capillary gives installation teams the flexibility to route the sensing element to the transformer winding pocket while connecting the gauge dial and switch assembly to a control panel or marshalling kiosk at a safe and convenient distance. This eliminates the need for costly workarounds, reduces installation complexity, and ensures a clean, professional installation without signal compromise.

The four-switch configuration is where this gauge moves beyond simple indication into active protection. Four independently adjustable switch contacts allow you to assign different temperature thresholds for multiple functions simultaneously. In a typical application, you might configure the first switch to trigger a cooling system start, the second to activate an alarm, the third to initiate a load reduction signal, and the fourth to trip the transformer offline if temperatures reach a critical threshold. So what does this mean for you? It means one instrument can manage an entire graduated protection strategy, reducing the number of separate devices required and simplifying your protection scheme considerably.

From a practical standpoint, this gauge is suitable for power transformers in utility substations, industrial manufacturing facilities, oil and gas installations, data center power infrastructure, and any application where transformer reliability directly impacts operational continuity. Whether you are specifying equipment for a new installation or replacing an aging gauge on an existing transformer, the Qualitrol Winding Temperature Gauge integrates cleanly into standard transformer monitoring and SCADA systems.

Installation and commissioning are straightforward for qualified electrical and instrumentation personnel. The sensing element is inserted into the transformer winding temperature pocket, the capillary is routed and secured along the transformer body, and the gauge head is mounted on the panel or marshalling box. Switch setpoints are adjusted on-site to match your specific protection philosophy and transformer rating. The robust construction of the gauge head ensures reliable performance across the temperature and vibration conditions typical of transformer environments.

Protecting a transformer means protecting your operation. Winding failures are expensive, disruptive, and in many cases entirely preventable with the right monitoring in place. The Qualitrol Winding Temperature Gauge — with its Swedish manufacturing quality, accurate 50-degree thermal image design, practical 12-meter capillary, and versatile four-switch protection capability — gives you a complete, professional-grade solution you can install with confidence and rely on for the long term. Order today and put precision transformer protection to work where it matters most.
